Engineered for performance, strength, and functionality in demanding environments.
JB11094
Body specifications
The JB11094 is a high-performance service body engineered to handle the toughest tasks. Designed for secure storage and dependable durability, it delivers superior utility for field operations across industries.
Body Specifications
-
14 GA. STEEL WITH 10 GA. REINFORCED SIDE BRACKETS & A 3/16” REINFORCED SLAM LATCH BRACKET
-
16 GA. DOUBLE PANEL DOORS WITH COMPRESSION T-HANDLE LOCKABLE LATCHES
-
14 GA. REMOVABLE PANELS WITH 3/16” FENDER SUPPORT
-
RAISED LIGHT HOUSING WITH LED BRAKE & REVERSE LIGHTS
TECHNIQ K60 HIGH-OUTPUT FLUSH MOUNTED WORK LIGHTS (STANDARD)
-
FOUR (4) FLUSH-MOUNTED, WELD IN D-RINGS
-
ADJUSTABLE ALUMINUM SHELVING WITH DIVIDERS
MOUNTED ON 14 GA. STRUT CHANNEL FOR ADJUSTMENT
Standard Features
Compression t-handle latches for secure, easy access
gas cylinder door shocks for smooth door operation
adjustable aluminum shelving with dividers
reinforced fender panels & tailgate for heavy-duty use
LED brake/reverse lights + Techniq K60 work lights
four flush-mounted d-rings for cargo security
FRONT VIEW
H: 22.50”
I: 49.725”
J: 22.50”
K: 94.00”

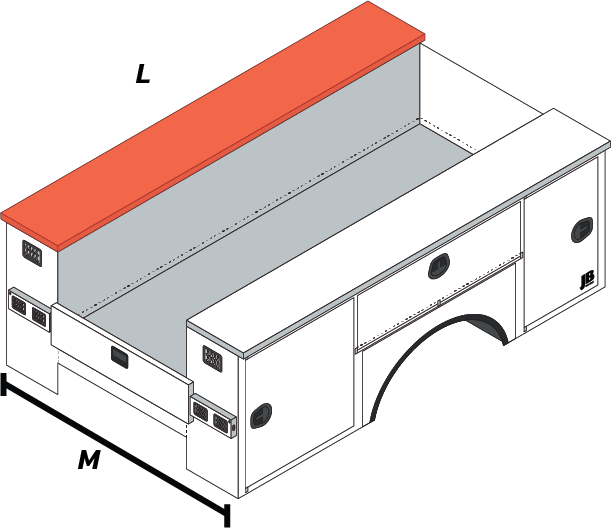

Bed View
L: 14 GA. WELDED TOP
M: Tailgate Dimensions
54.875” X 11.25” x 2.00”
