Engineered for performance, strength, and functionality in demanding environments.

JB11094Cr

Body specifications

The JB11094CR is a high-performance service body engineered to handle the toughest tasks. Designed for secure storage, crane compatibility, and dependable durability, it delivers superior utility for field operations across industries.

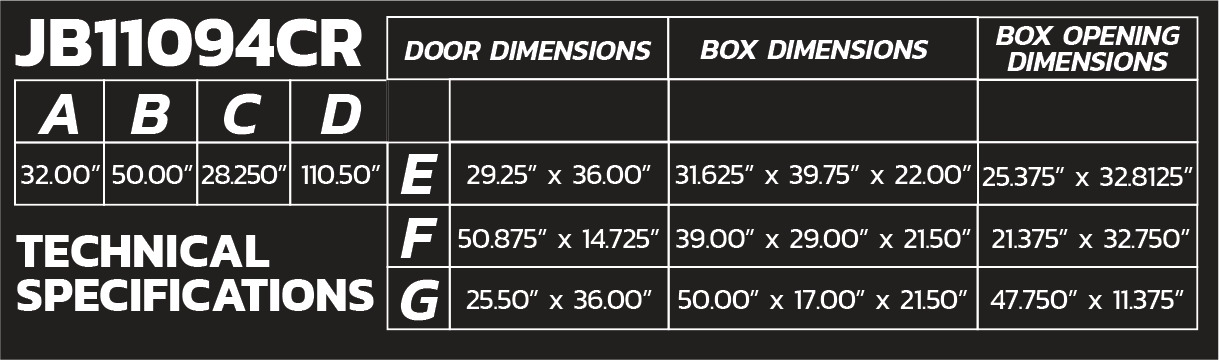

JB11094cr Technical Spec. Sheet

Body Specifications

  • 14 GA. STEEL WITH 10 GA. REINFORCED SIDE BRACKETS & A 3/16” REINFORCED SLAM LATCH BRACKET

  • 16 GA. DOUBLE PANEL DOORS WITH COMPRESSION T-HANDLE LOCKABLE LATCHES

  • 14 GA. REMOVABLE PANELS WITH 3/16” FENDER SUPPORT

    • RAISED LIGHT HOUSING WITH LED BRAKE & REVERSE LIGHTS

    • TECHNIQ K60 HIGH-OUTPUT FLUSH MOUNTED WORK LIGHTS (STANDARD)

  • 4,000 LBS OR 20,000 FT/LBS RATED CURBSIDE REINFORCEMENT

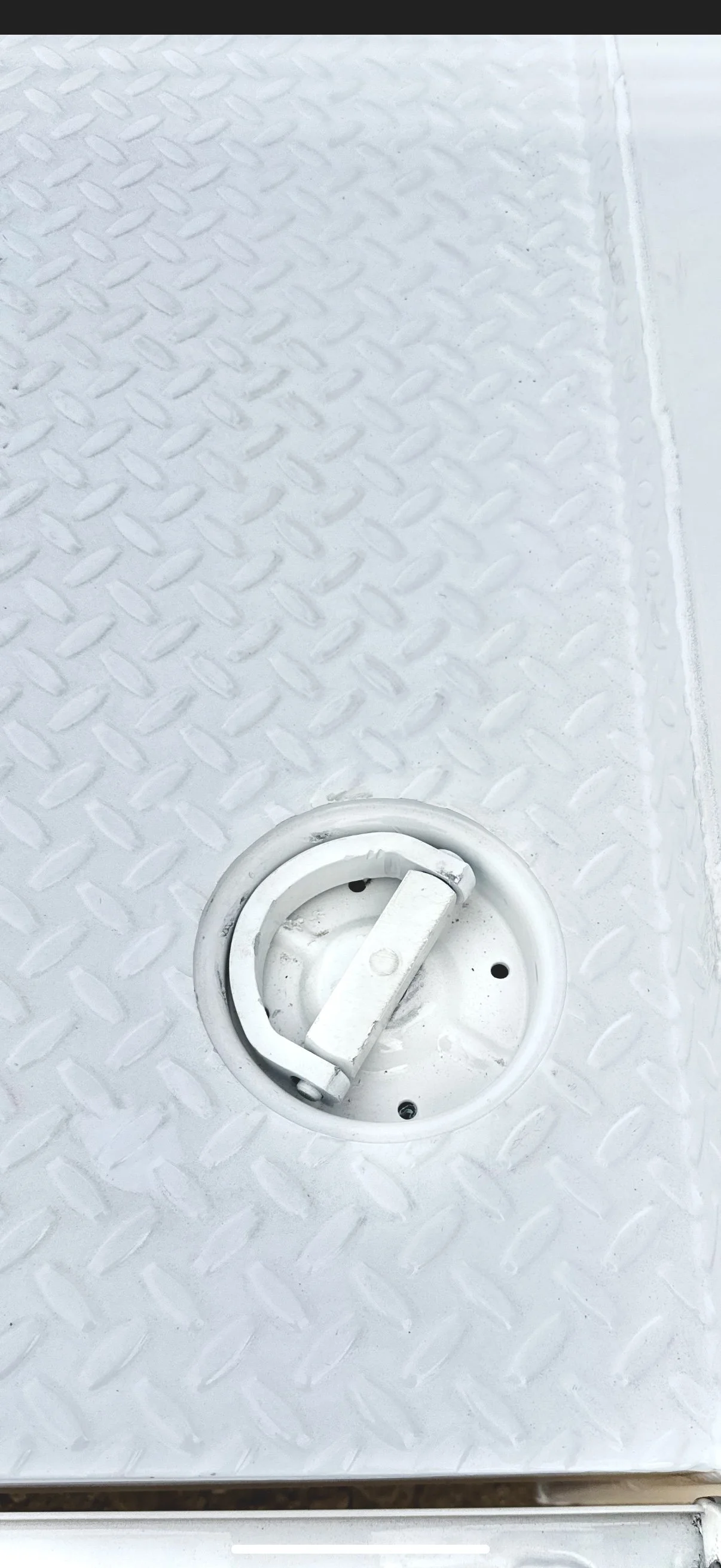

  • FOUR (4) FLUSH-MOUNTED, WELD IN D-RINGS

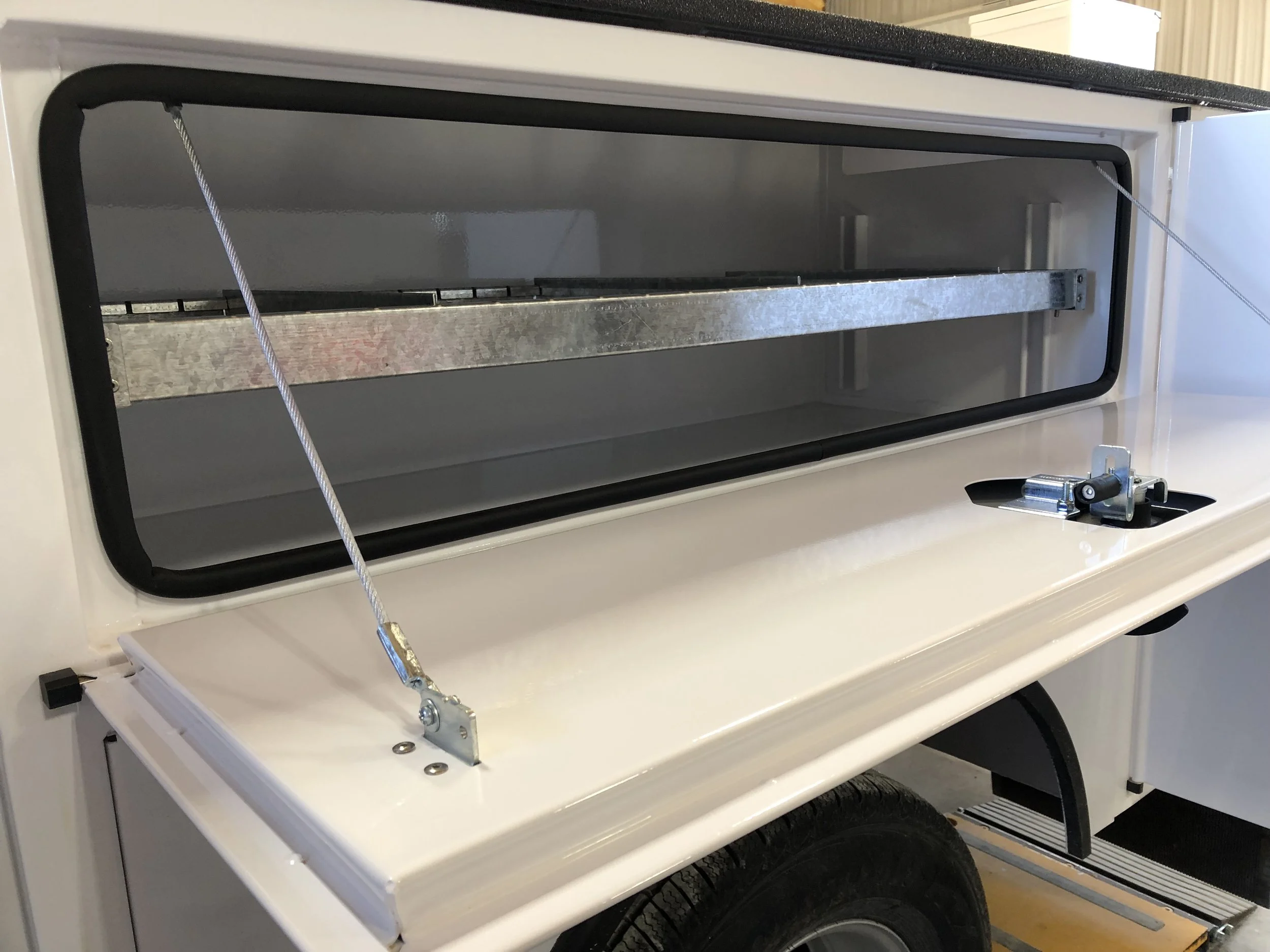

    • ADJUSTABLE ALUMINUM SHELVING WITH DIVIDERS

    • MOUNTED ON 14 GA. STRUT CHANNEL FOR ADJUSTMENT

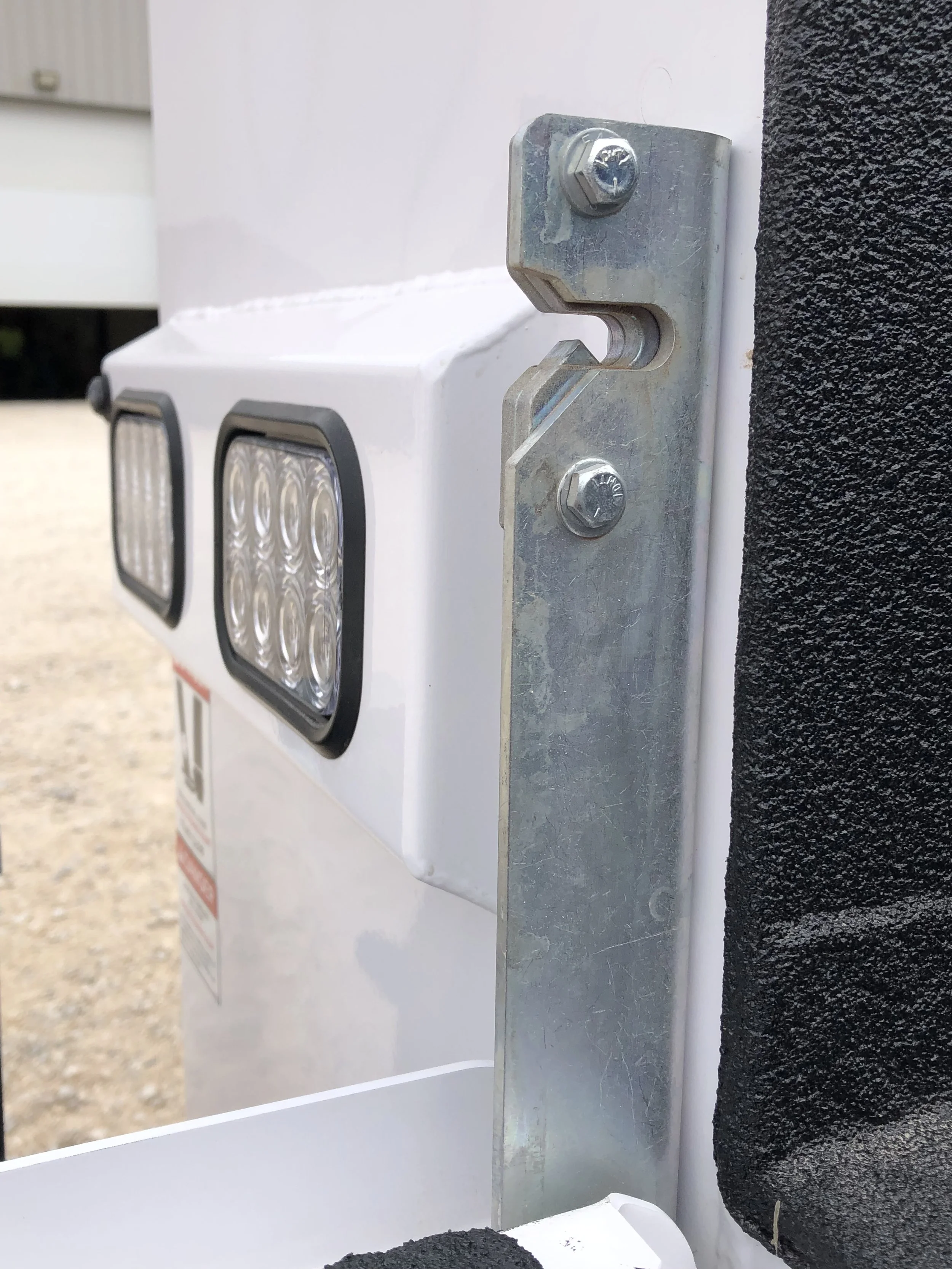

Close-up of a metal mounting bracket and electrical components on a white surface, possibly part of an outdoor electronic device or enclosure.

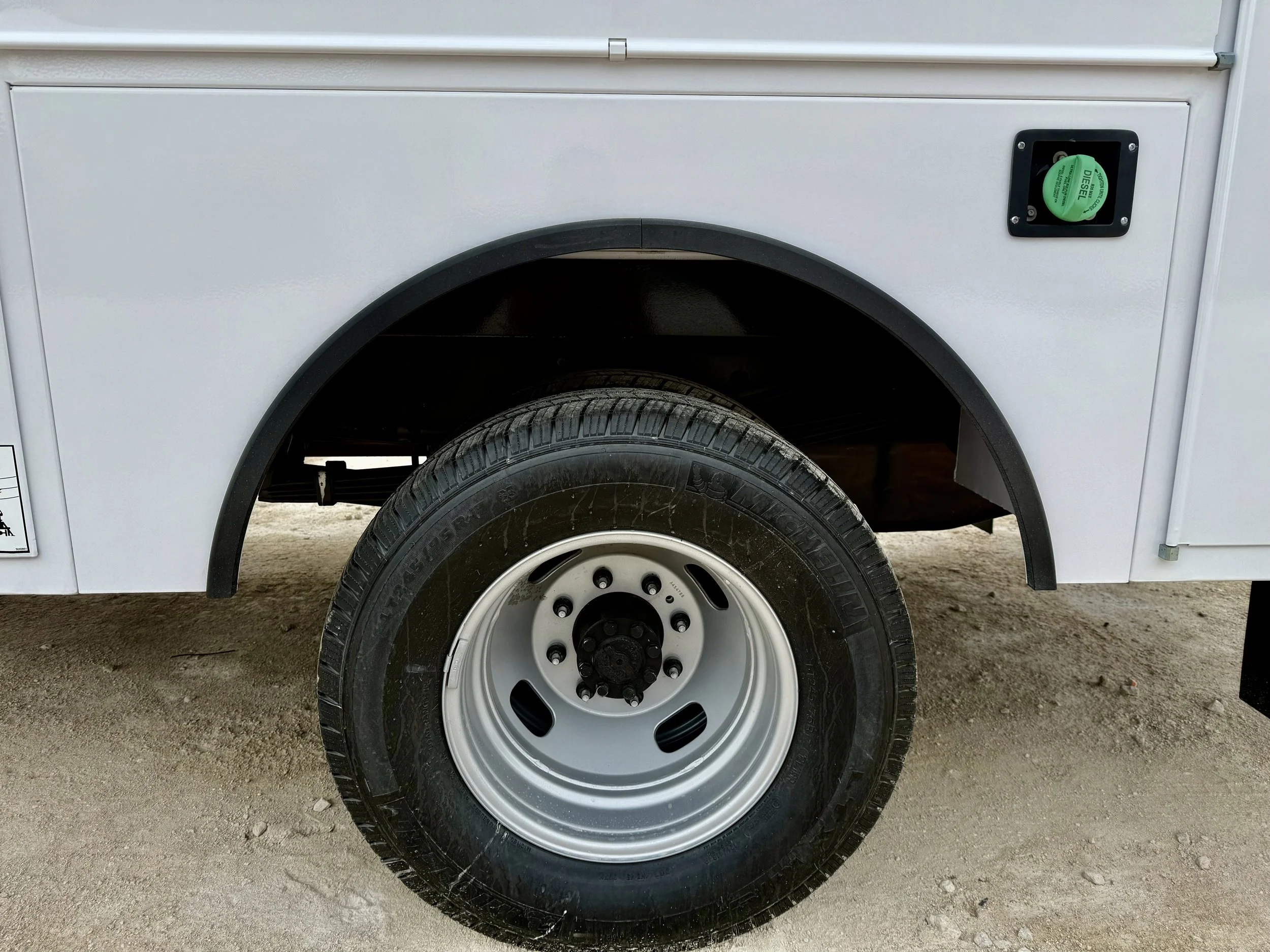

Close-up of a vehicle wheel on an off-road surface, showing the tire, rim, and part of the white vehicle body with a black wheel well and a green circular valve cap.

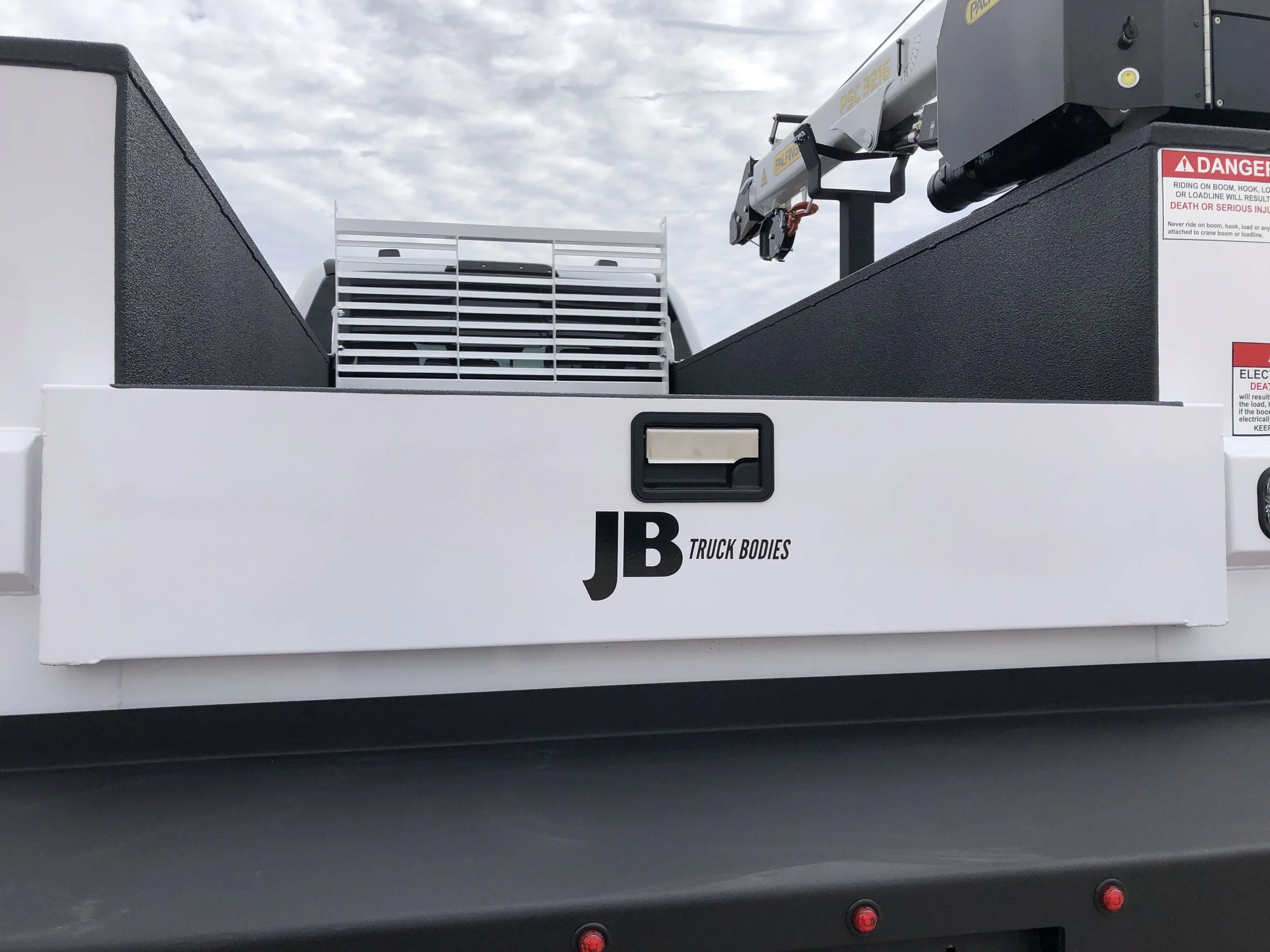

Close-up of the back of a utility truck or construction vehicle with the JB Truck Bodies logo and a trailer hitch.

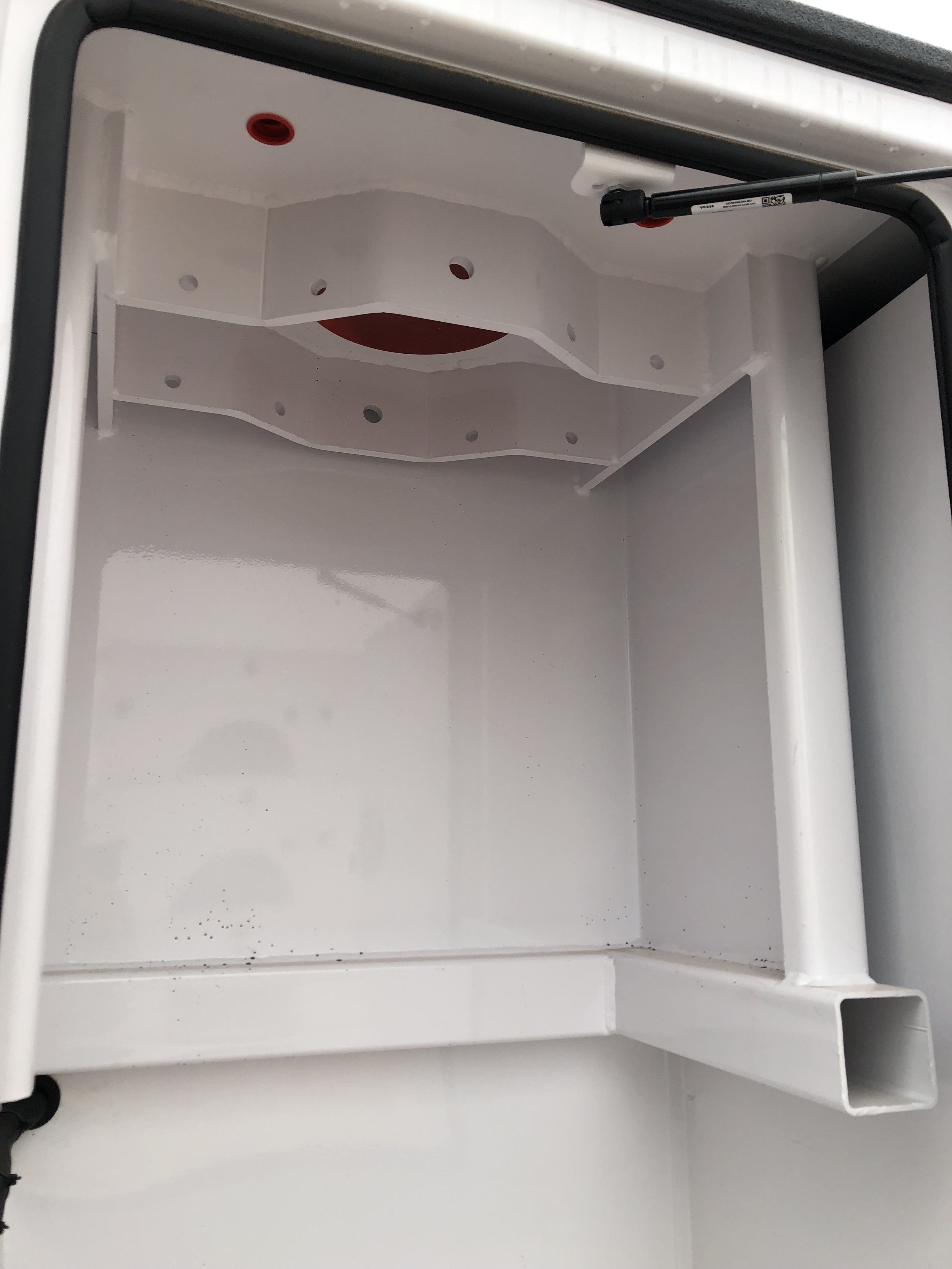

Empty white cabinet with a red circular opening at the top and a rectangular vent at the bottom right.
Close-up of a white, textured metal surface with a circular drain cover that has a latch handle.
Close-up of a gas strut or hydraulic lift support attached to a white and black piece of equipment, possibly an industrial or medical device.

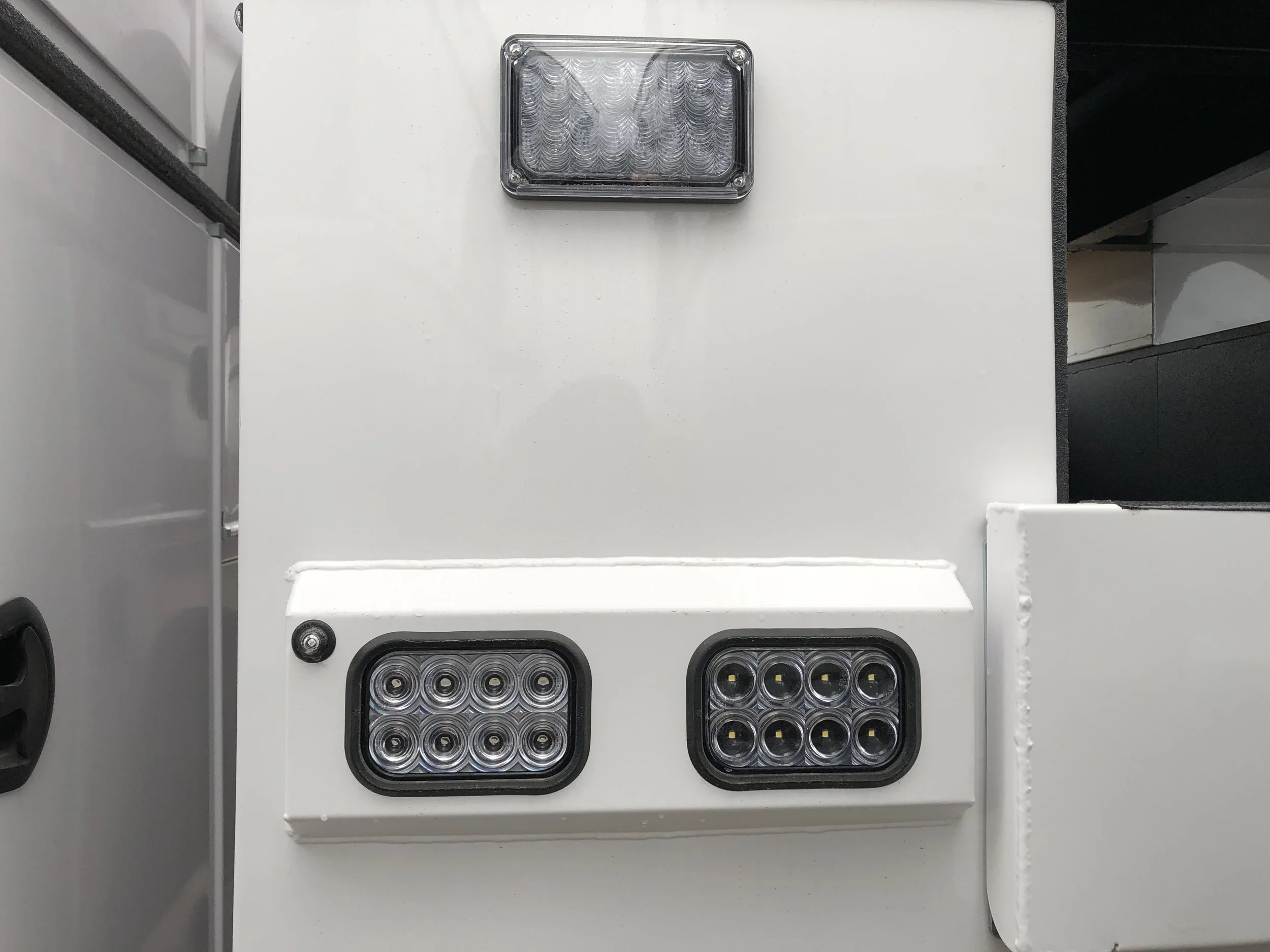

Close-up of a white electrical or industrial box with two sets of LED lights, one larger and one smaller, and a rectangular transparent cover on top.
Close-up of a white trailer with an open hatch and a metal shelf inside, secured with a cable and locking mechanism.
Close-up of a mechanical lock or latch system installed in a wall, with metal components and a black wheel or knob.
Black handle mounted on a white surface, used for opening a door.

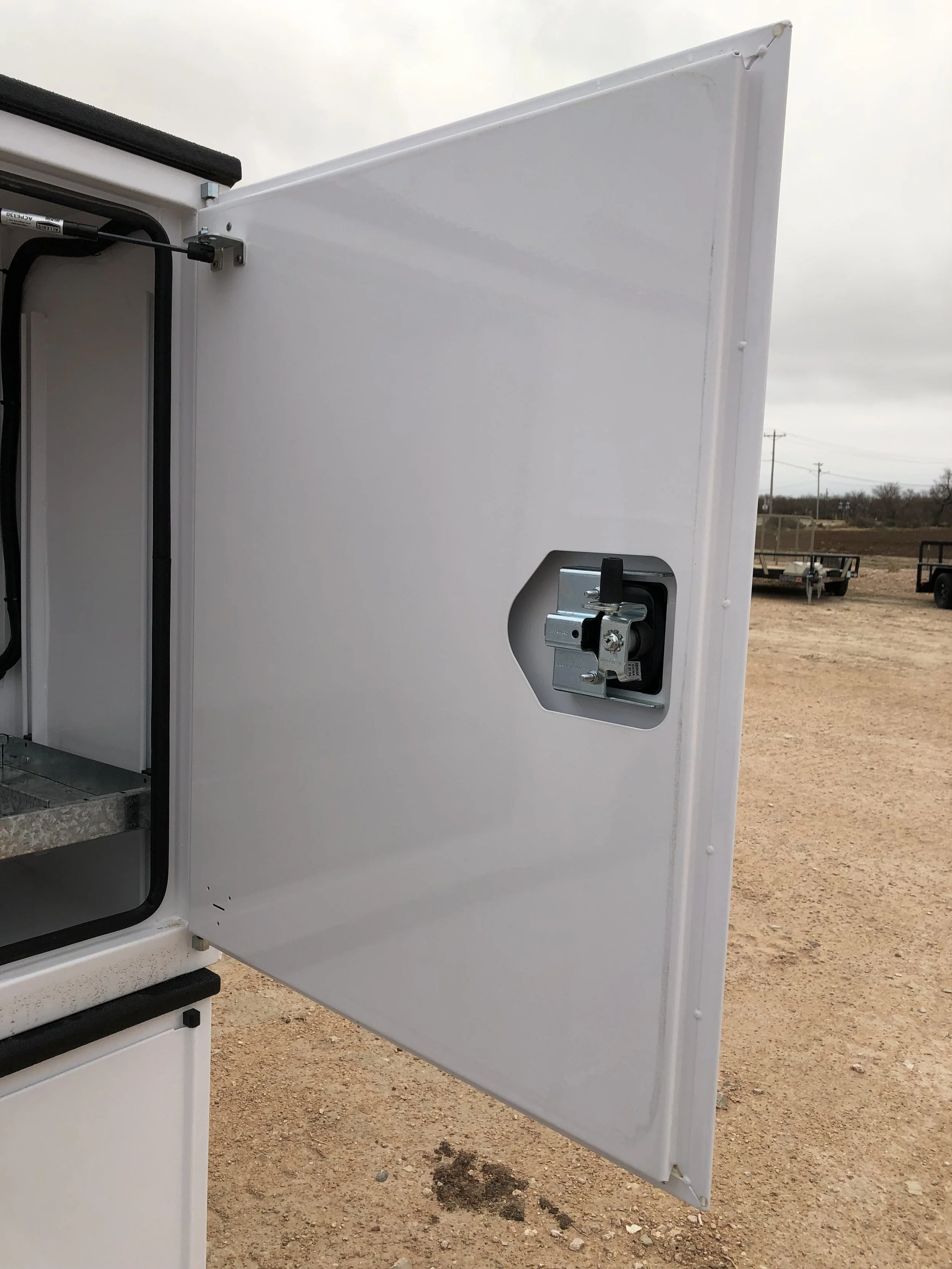

Open white metal door with latch, on an outdoor utility or service truck, dirt ground and overcast sky in background.

Standard Features

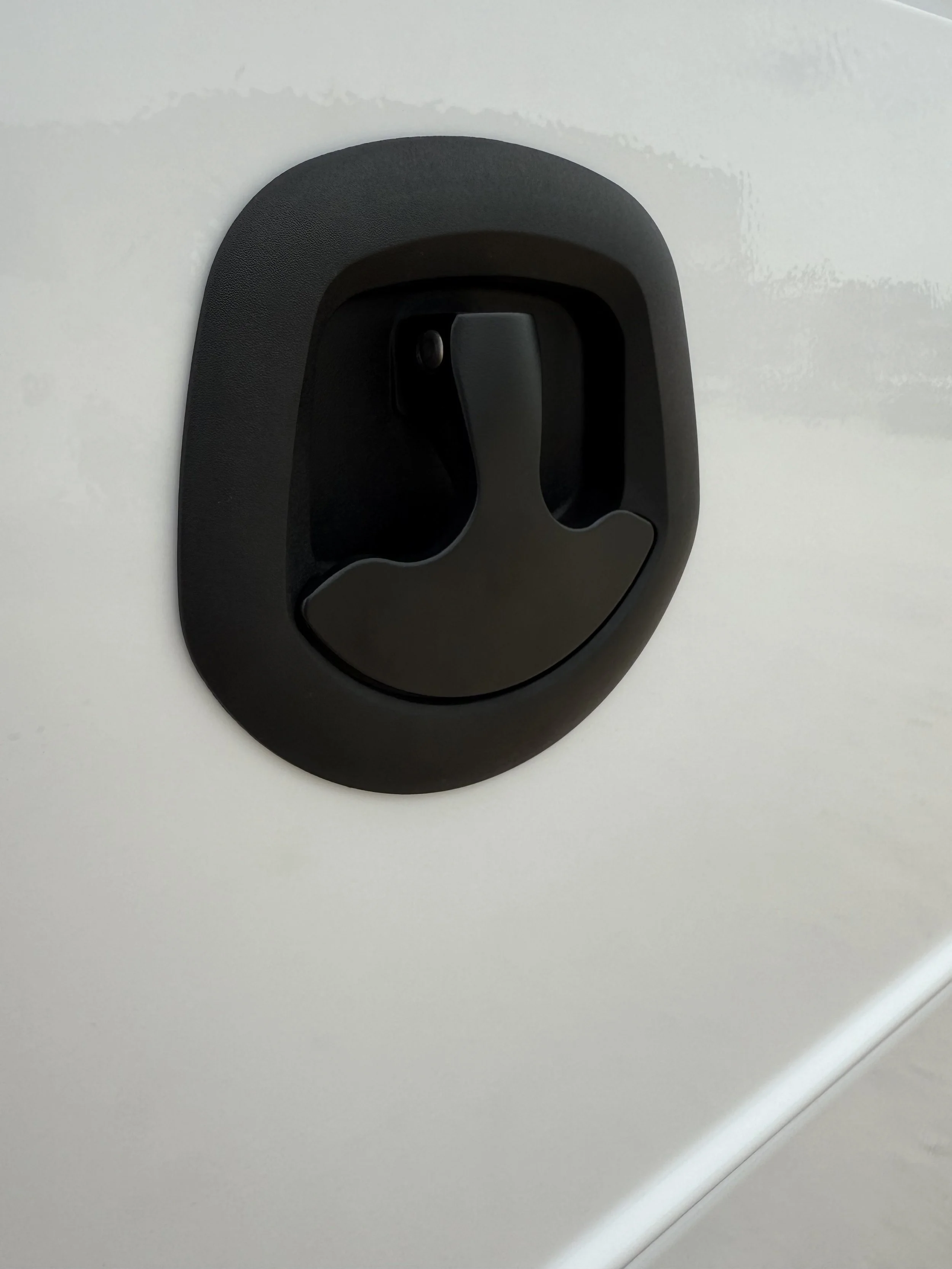

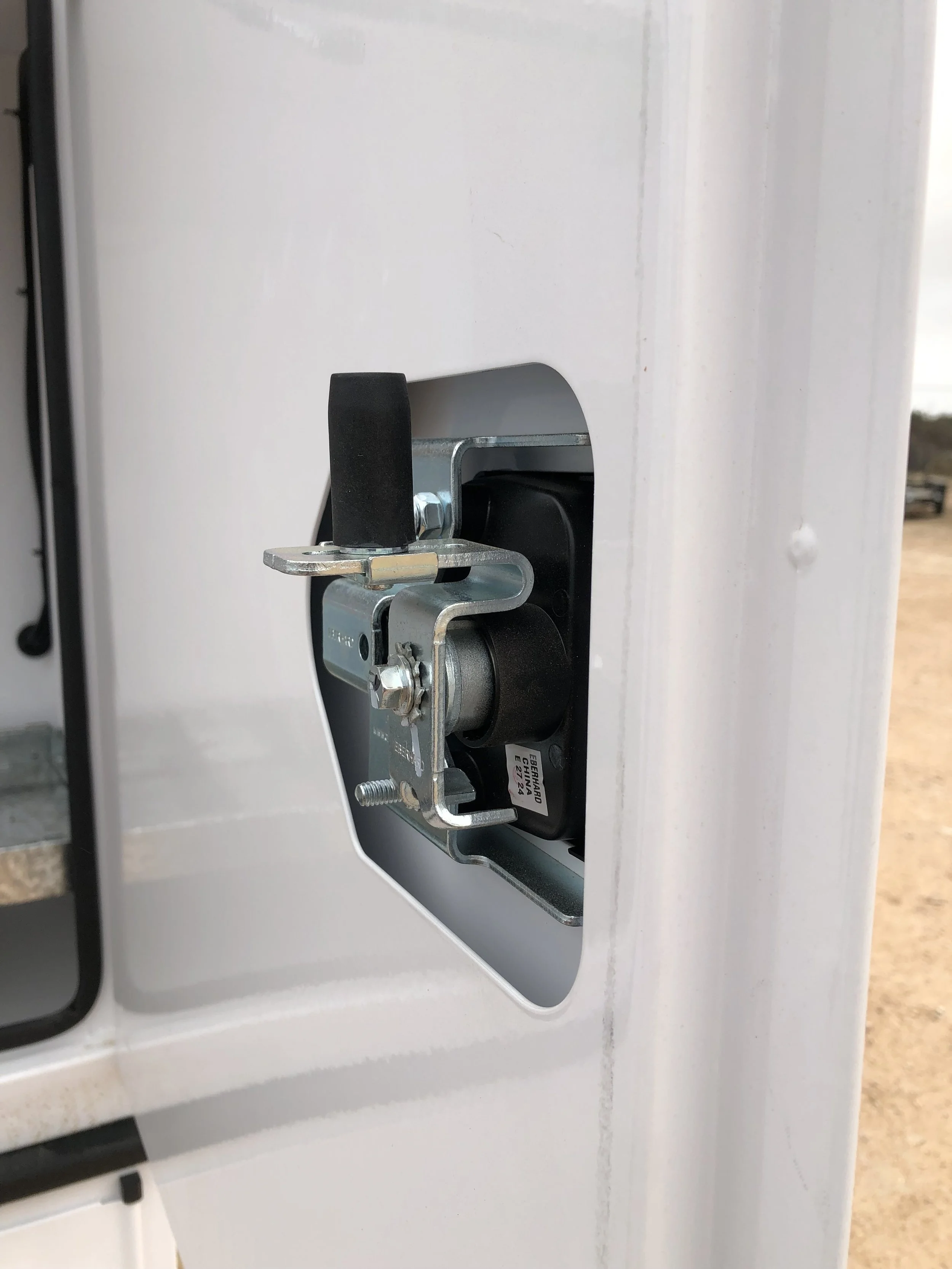

  • Compression t-handle latches for secure, easy access

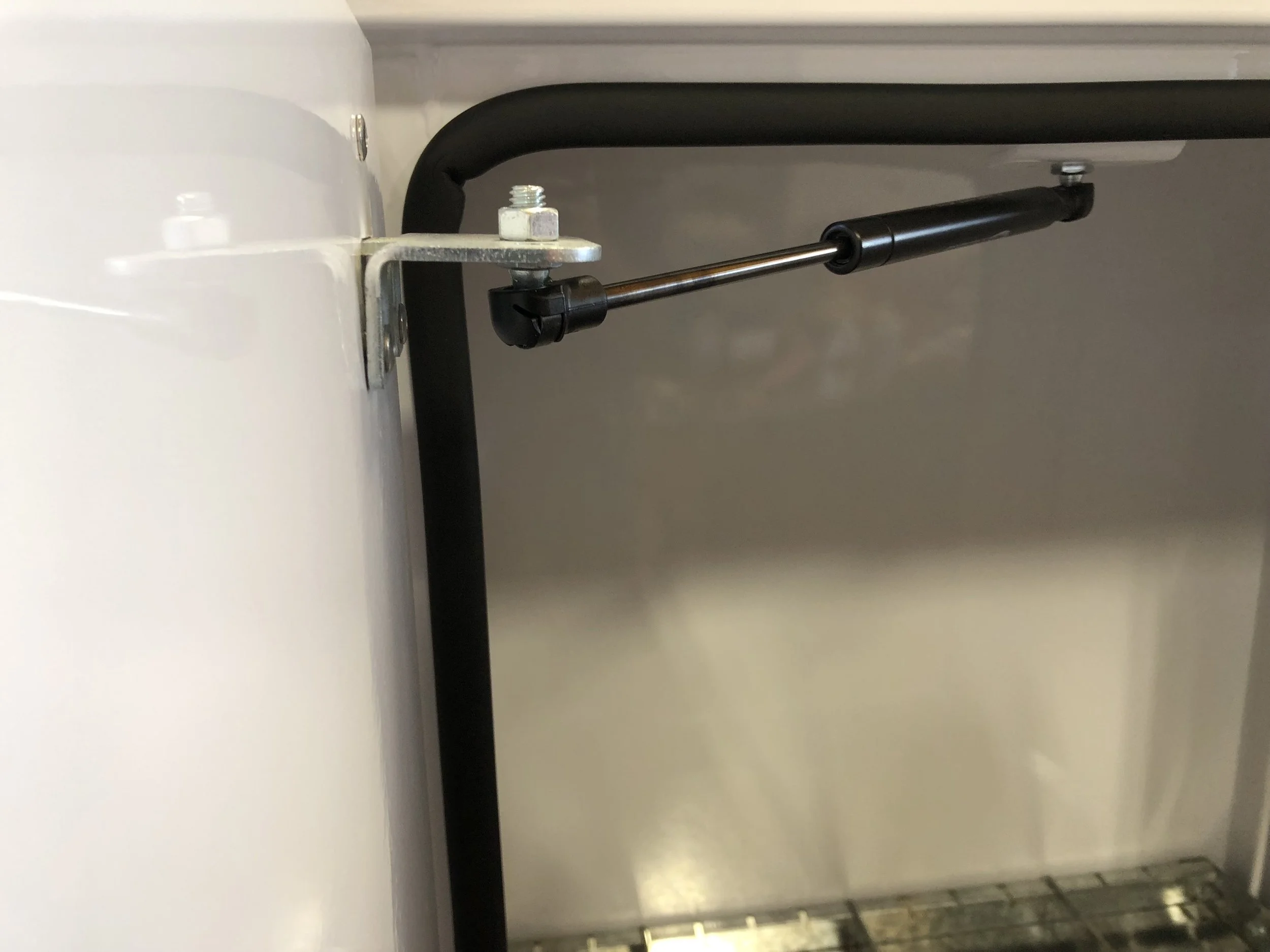

  • gas cylinder door shocks for smooth door operation

  • adjustable aluminum shelving with dividers

  • reinforced fender panels & tailgate for heavy-duty use

  • LED brake/reverse lights + Techniq K60 work lights

  • four flush-mounted d-rings for cargo security

  • curbside crane reinforcement (up to 4,000 LBS)

FRONT VIEW

H: 22.50”

I: 49.725”

J: 22.50”

K: 94.00”

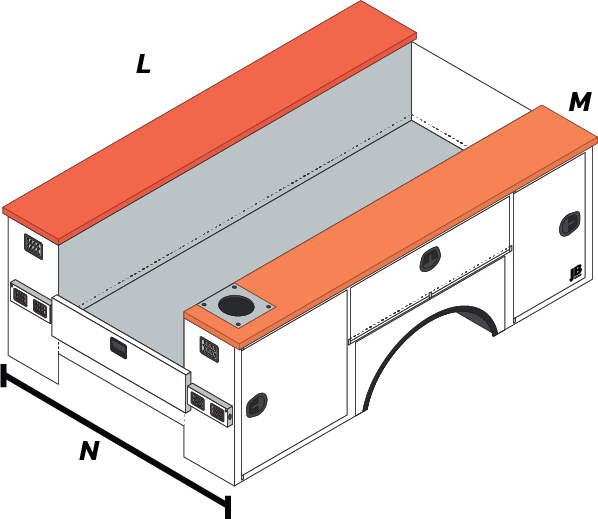

Bed View

L: 14 GA. WELDED TOP

M: Crane Mount Ready

N: Tailgate Dimensions

54.875” X 11.25” x 2.00”
